Telescopic ball bearing slides
Accuride has been at the forefront in the design and manufacture of telescopic slides and movement systems since 1962. Continuous development with first-class manufacturing and continuous quality control are guarantee the constant high quality and offer expanding product range for customer needs.
Product groups of Accuride:
- Slide and accessories:
Due to high production quality standards ball guidance and elements of slide fits together with high guidance accuracy
giving smooth, precise and light moving during catalogue specified lifecycle. Besides easy handling, as main requirement, almost all of slides have one or more special features which make Accuride slides much more than a simple, functionless guide. Applying Accuride slides you can improve space utilization and due to certain features can provide easy, safe access for repairing or maintenance of your product.
Special features Optionally, additional accessories, mounting brackets are available for certain slide types to make mounting easy.
You can find detailed data sheets and technical support of slide selection in Accuride catalogue in English is available to download in PDF format from our website. - TV lift & further products

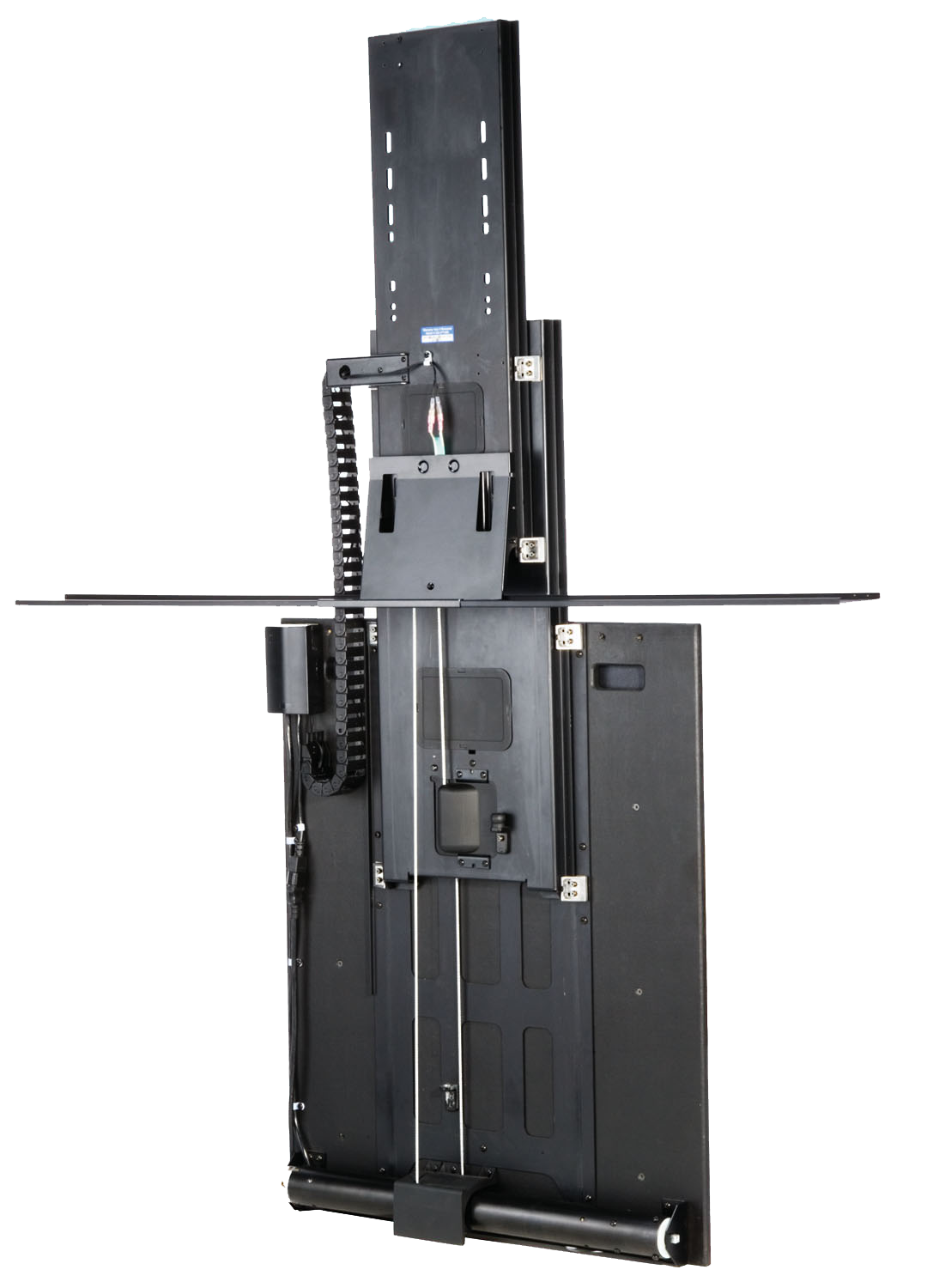

TV lift (DBLIFT-0127)
TV-lift is an electro-mechanical lift mechanism to move up and down LCD or plasma TVs. Using the product televisions can be aesthetically hides into furniture when they are not watched. The operation of lift mechanism is handled by remote control.
Main features:- Load rating up to 54kg
- Lifting travel 864mm
- Accommodates most TVs up to 50” (diagonal measurement) and up to 85cm tall
- Raises to fully extended position in 15 seconds
- Pre-wired and pre-mounted to backboard for easy installation
- TV mounting brackets as option
- 2 remote controllers
- Built in auto-reverse safety feature
- CE approved components
- Fixing hardware includedmaximális teherbírás 54 kg

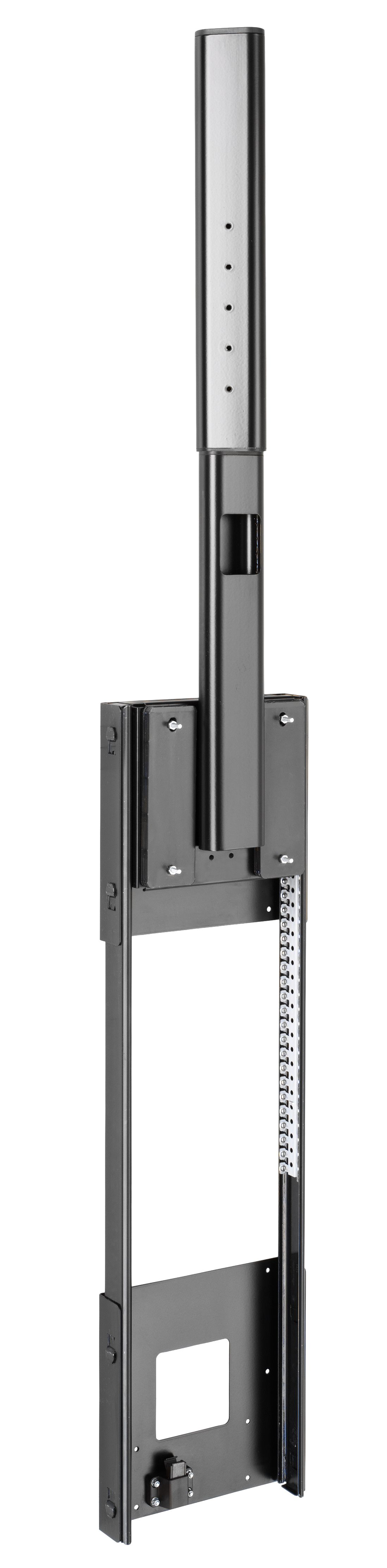

Monitor lift (DBLIFT-0019)
Monitor lift is an easy operable push to open mechanical lift developed to hide LCD monitors and small LCD TVs (max.6, 5kg) into furniture.
Usage is ideal in multi-purpose tables if space requirements or aesthetical reasons need to hide screens into desk. (e.g. in libraries, conference rooms, educational institutions, banks, shops, homes, etc.).
Main features:- Push to open and close mechanical lift, it does not require electricity
- Suitable for screens weighing 2,5-6,5 kg, up to 22” (diagonal measurement) and up to 450mm high
- Lifting travel 538mm
- Swivel +/- 112.5°
- Raises to fully extended position in under 2 seconds
- Wire management and cable control kit included
- Fixing hardware included
- Damper and weights control movement. Adding or removing counterweights movement can be refined to the monitor's weight. The package includes one weight pack.
- RoHS compliance
- Available accessories:
- weight packs (10pcs of 110g weight)
- weight bracket for more than 2 packs
- fixed VESA bracket
- 18° tilt VESA bracket

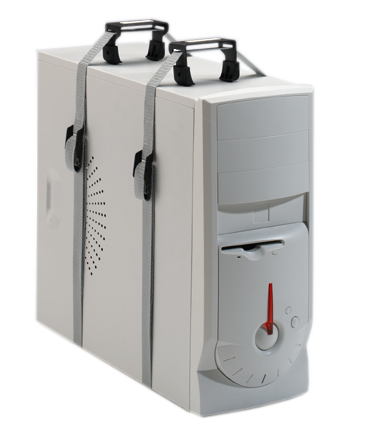

CPU holders
With CPU holders the computer is held off the floor, well away from feet, dust and static and yet is easy to reach. Ideal for height adjusting desk systems, CPU moves with the desk top and prevents cable stretching. It can be retrofit to any table.
Main features:- Straps hold most shapes and sizes of CPU up to 34kg in weight and 163cm perimeter
- Fix and swivel versions
- Soft gripper feet hold the CPU firmly
- Vertical CPU mounting standard, horizontal mounting with optional adapter plate34kg súlyig és 163cm kerületű számítógépházig használható.

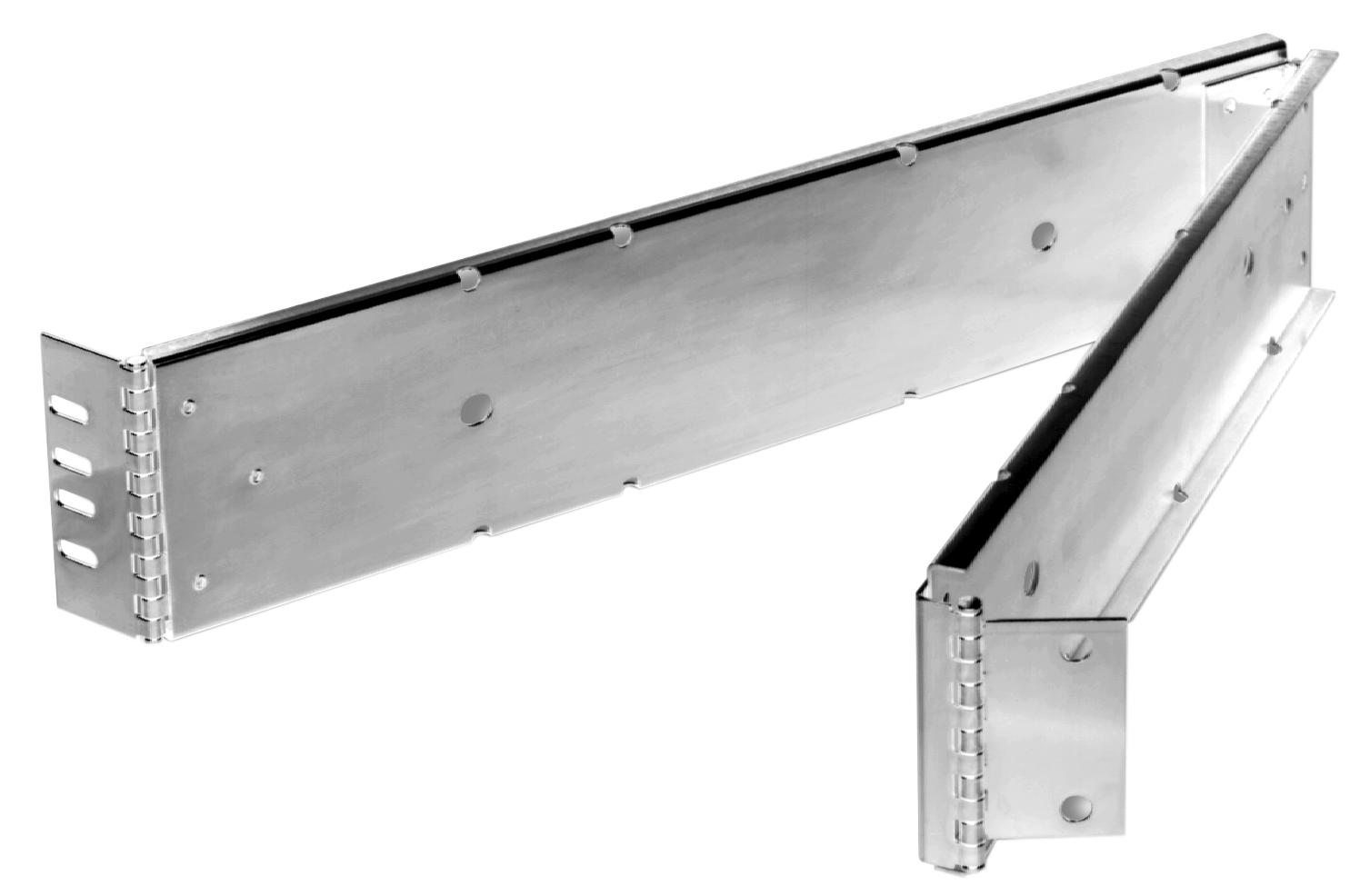

Cable carriers
With cable carrier usage you can prevent the accidental cable injury or disconnection when you pull drawer out with electrical unit.
Special features

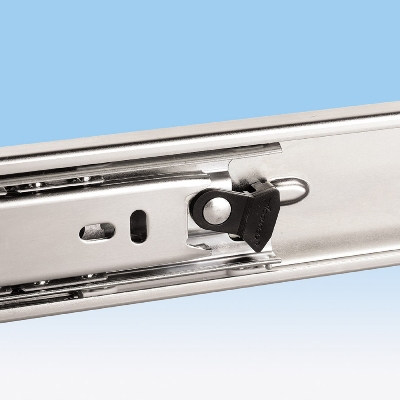

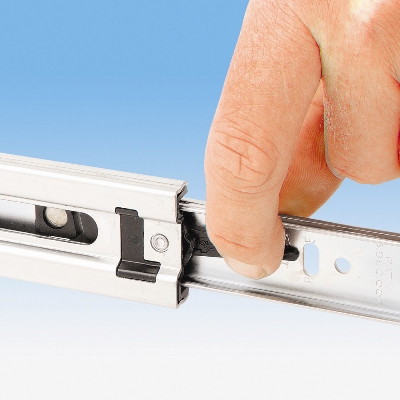

Front disconnect
Disconnect allows simple connect/disconnect for a slide member from slide assembly by releasing an internal lever.
If maintenance requires quick and easy access to the area beyond drawers this feature is beneficial by simple removing and remounting drawers avoiding the time-consuming screwdriver usage.

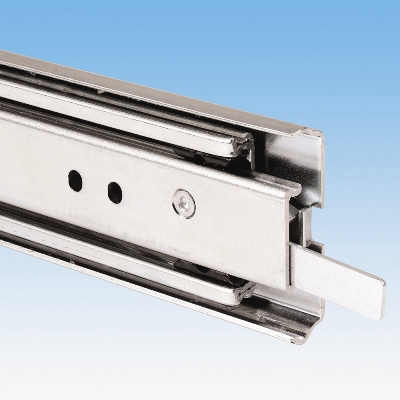

Lock-in / Lock-out
Locks hold the slide either fully closed or open and a lever must be actuated to move the slide.
This function is proposed in applications where movement of slide by inertia of drawer unit resulting random opening and closing is not permitted for safety reasons. In case of drawers in vehicles (trains, buses, etc.), battery trays, large and heavy to move units can be involuntary moved causing accidents, usage of this feature is strongly encouraged.
Hold-in / Hold-out
It keeps the slide open or closed until extra force is applied.
Hold feature is suggested where locking feature is not necessary but slight horizontal deviations of floor can cause opening or closing of drawers. Popular feature of tools, personal stuff and parts storage cabinets, drawers in industrial environment where levelling difficult to resolve even in movable units.

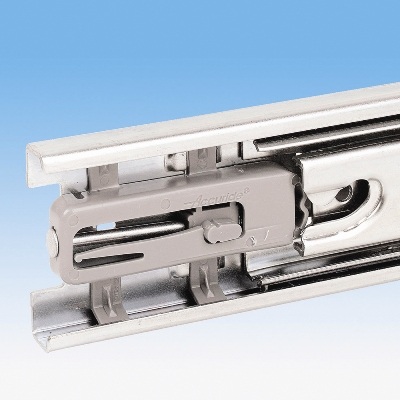

Self-close (SC, HDSC)
Self-close slides include a spring attachment designed to close the slide near to ‘in’ position and prevent bounce back. SC is normal type while heavy-duty version (HDSC) provides increased self-closing force.
This feature is beneficial for drawers, which include end-all-closed is an important requirement, such as in cabinet where a drawer without complete closure doesn’t allow opening another one. It’s useful function of mobile drawer storage as well.
Easy close (EC)
It is a dampened self-close slows the closing action for controlled and smooth operation. This feature avoids a separate damper or slam inhibitory element integration, therefore usage is widespread in high-end furniture, kitchen furniture and office furniture.

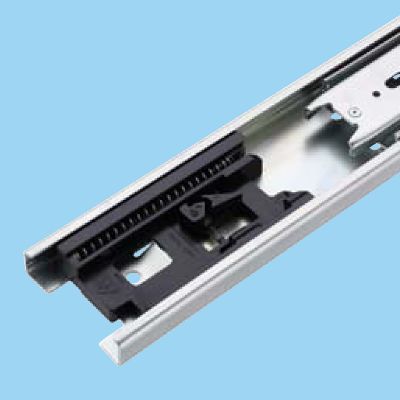

Touch release (TR, HDTR)
Touch release slides open and close with pressure to the front of slide. TR is normal type while heavy-duty version (HDTR) provides increased stay-closed option.
This function allows eliminating usage of handle or pull of drawers presenting aesthetic outside appearance. Usage is popular in high-end furniture, kitchen furniture, office furniture, hidden drawers case.
Cam drawer adjust
Cam drawer adjust allows minute adjustment to the drawer front for easy alignment by eccentric screw.
It’s useful feature of multi-drawer cabinets where subsequent fine adjustment of drawers may be required because of possible manufacturing inaccuracies.
Standard feature on 2132 and 3832 series slides.

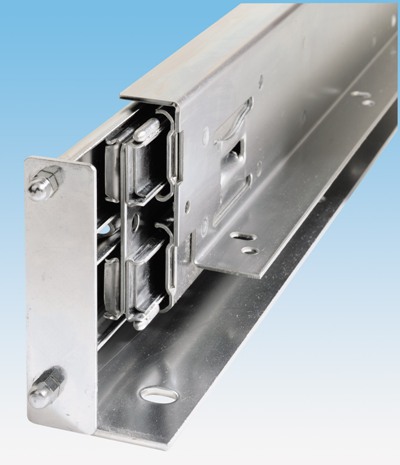

Shock blocks
Shock blocks are hardened steel pins that provide an interference fit between the slide members to minimize the amplification of vibration and reduce the damaging effects of shock in the closed position. Standard feature on 0522 series slides.
Recommended slide feature of large mass units on vehicle (such as truck battery tray) and beneficial to use in any vibration environments.
These products help better space utilization and access. Additional features of slides offer a solution for wide area of applications to move drawers, trays and units while using lifts TV or monitor can be hidden in furniture easily.
Main application areas:
- Industrial machinery and storage cabinets
- Electronic units and testing equipment
- ATM and gaming machines, cash-registers
- Telecommunication racks
- Emergency vehicles and trucks
- Trains, aircraft, ships, boats
- Furniture, office furniture, desks
All fully operational production facility of Accuride are certified to ISO9001, with European plants also achieving the ISO14001 Environmental Standard and the ISO TS16949 standard for automotive production.
