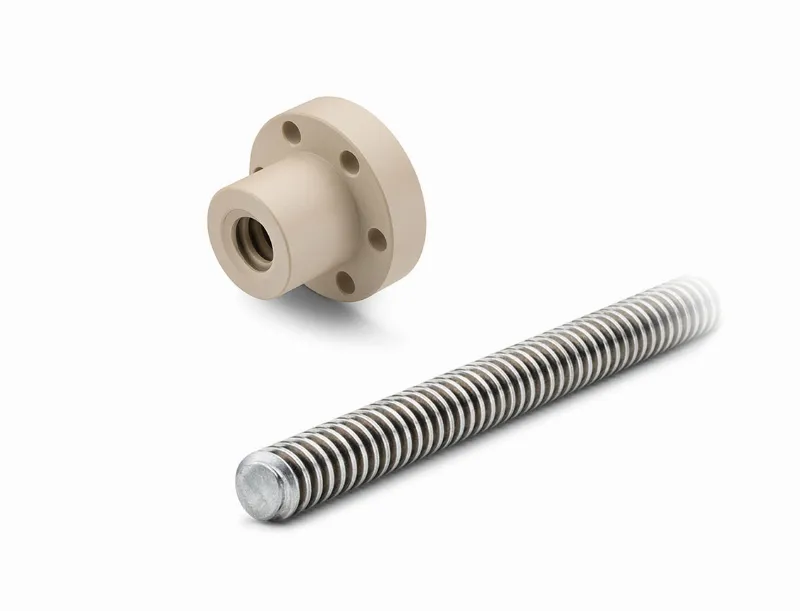

NSF, NSL - trapezoidal threaded lead nuts and spindles

NSF, NSL - trapezoidal threaded lead nuts and spindles

The Elesa+Ganter NSF and NSL products are a trapezoidal threaded flanged nut and spindle pair. The nuts are available in two grades of plastic material, one of which meets FDA EU 10/2011 requirements and is therefore suitable for food applications. TR 10x2 to TR 30x6 right threaded designs are available.

NFS trapezoidal threaded lead nuts:

  • polyamide based, self-lubricating, beige coloured technopolymer (W-type)

  • acetal-based, self-lubricating, white coloured technopolymer (F-type)

  • F-type is FDA EU 10/2011 compliant for food applications

  • for use between -40°C and +90°C

  • thread sizes between TR 10x2 and TR 30x6, right-hand thread design

  • flange nut design with fixing holes on the flange



NSL trapezoidal thread lead spindles:

  • steel material (type A)

  • stainless steel material (SST type)

  • for use with NSF nuts

  • thread sizes between TR 10x2 and TR 30x6, right-hand thread design

  • L=1500mm length



You can view and download the technical details of the NSF trapezoidal threaded nuts and NSL spindles in PDF format from our website by clicking on the links above.
