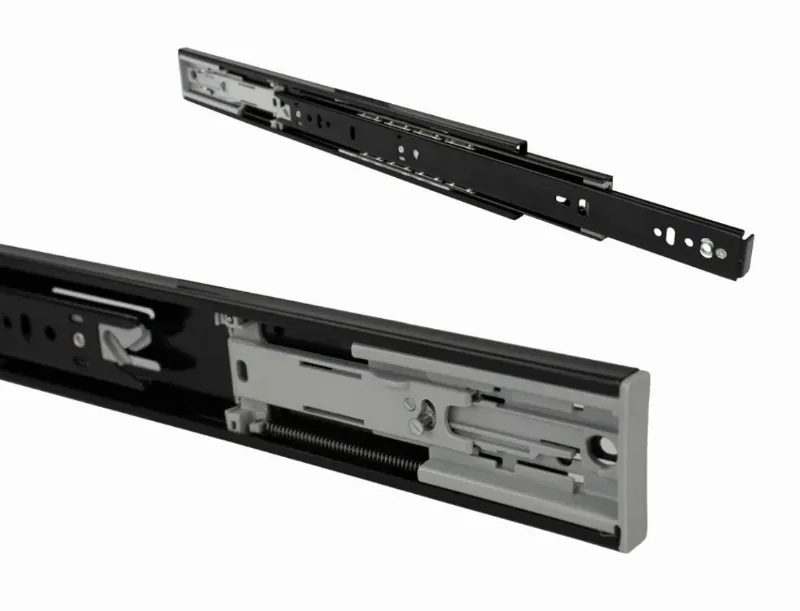

Accuride DB3832EC-D – Telescopic ball bearing slide with EasyClose

The DB3832EC-D Telescopic ball bearing slide is designed for applications requiring 100% extension and a controlled, silent closing function.

Specifications

• Load rating: up to 45 kg per pair
• 100% extension
• Slide height: 45.7 mm
• Slide thickness: 12.7 mm
• Maximum slide length: 700 mm
• Temperature: 10 °C to 40 °C
• Permitted mounting orientation: vertical mount
• Not suitable for flat mounting

Features

• Front disconnect
• Hold-in
• Cam adjustment 3.2 mm in height direction
• EasyClose to ensure soft, silent closure of the slide
• Breathing tabs to compensate variations in cabinet or drawer width

Material and finish

• Main material: mild steel
• Ball material: hardened steel
• Finish: black zinc finish – 96 h salt spray test

Application benefits

• Full extension for improved access
• Controlled closing with EasyClose mechanism
• Durable construction for reliable operation
• Suitable for industrial drawer systems and enclosures
