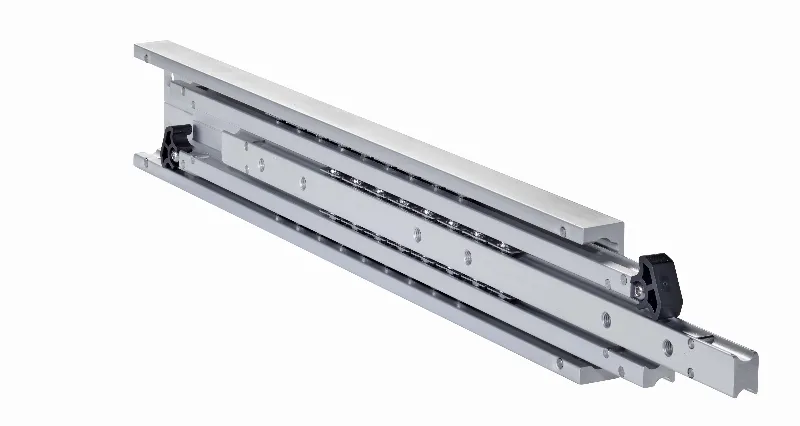

DA4165 – heavy-duty two-way travel slide

DA4165 Accuride ball bearing slide family offers a solution for those heavy-duty applications, where the contents of the drawer need to be accessed from opposite sides, and for material handling or storing compartments, which are separated by areas for safety reasons.

Features:

• two-way travel, can be pulled out from middle to both directions

• aluminium slide members, stainless steel balls and call retainers

• 100% travel length

• load rating between 205 and 270kg depending on the length

• 400-500-600-700-800-900-1000mm length

• cross section is 26,5x80mm

• 10000 cycles with appropriate mounting and usage

Typical application:

• single purpose machines

• storing compartments

• automated warehouses

• etc.

Catalogue page of DA4165 two-way slide can be found and downloaded from our website.

Watch a demonstration video with an application example.
